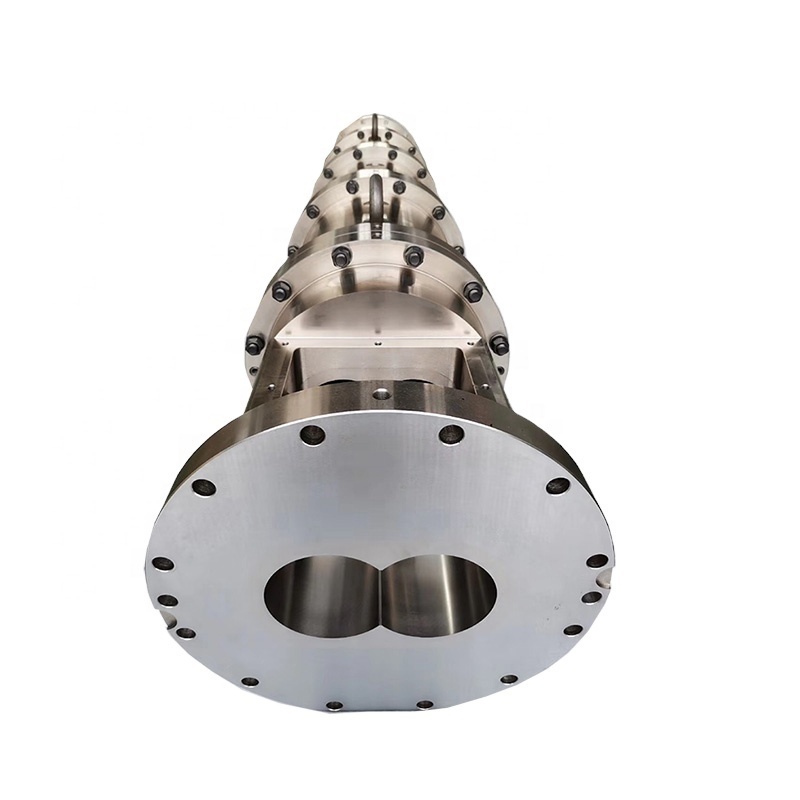

52mm Twin Screw Extruder Barrel for ABS Processing 300 RPM

プロダクト細部

起源の場所: 江蘇、中国

ブランド名: zhitian

支払及び船積みの言葉

最小注文数量: 1

価格: $280-300

最もよい価格を得なさい

プロダクト細部

製品の説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                            52mm twin screw extruder barrel, ABS processing extruder barrel, 300 RPM extruder screw barrel


ネジのデザイン:	ダブルスクリュー	ツインスクリュータイプ:	共同回転並列ツインスクリュー
ネジ材料:	42crmo	ネジ径:	52mm
ねじ速度:	300 rpm	中心距離:	63mm
重さ:	30 kg	寸法:	240x210x170
材料オプション:	CR26、ニッケルベースの合金、SAM26	処理型:	共抽出
バレルの材料:	Hastelloy-C Alloy、38crmoala、304/316/316Lステンレス鋼	ラインナー材料:	38CRMOALAライナー、440Cステンレススチールライナー、CR12MOVライナー、SKD11/SKD61ライナー、DC53ライナー、W6MO5CR4V2ライナー、ZTCR26ライナー、SAM26
複合合金ライナー:	S45C+ZT610 NI60ベースのライナー+CU、S45C+ZT615 NI60ベースのライナー、S45C+ZT625 NI60ベースのライナー+タングステンカーバイド、S45C+ヒップコバルトベ	プラスチック処理:	腹筋
コアコンポーネント:	ベアリング,ギアボックス,スクリュー

ネジのデザイン:	ダブルスクリュー
ツインスクリュータイプ:	共同回転並列ツインスクリュー
ネジ材料:	42crmo
ネジ径:	52mm
ねじ速度:	300 rpm
中心距離:	63mm
重さ:	30 kg
寸法:	240x210x170
材料オプション:	CR26、ニッケルベースの合金、SAM26
処理型:	共抽出
バレルの材料:	Hastelloy-C Alloy、38crmoala、304/316/316Lステンレス鋼
ラインナー材料:	38CRMOALAライナー、440Cステンレススチールライナー、CR12MOVライナー、SKD11/SKD61ライナー、DC53ライナー、W6MO5CR4V2ライナー、ZTCR26ライナー、SAM26
複合合金ライナー:	S45C+ZT610 NI60ベースのライナー+CU、S45C+ZT615 NI60ベースのライナー、S45C+ZT625 NI60ベースのライナー+タングステンカーバイド、S45C+ヒップコバルトベ
プラスチック処理:	腹筋
コアコンポーネント:	ベアリング,ギアボックス,スクリュー

52mm Twin Screw Extruder Barrel for ABS Processing 300 RPM

Professional Manufacturer Screw and Barrel for Plastic Twin Screw Extruder Machine

Color	Metal
Standard	GB ISO 9001
Model	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand	zhitian
Quality	High wear-resistance and corrosion-resistance
Used	For twin screw extruder

Efficient and stable, widely used in industries: The twin-screw extruder barrels produced by zhitian are widely used in plastics, rubber, chemicals, food, new energy and other industries. Countless extruders on the market use our accessories. And efficient and stable operation, these prove our strength.

Advanced "Building Block" Design

The main screw and barrel of the split twin-screw extruder adopt an advanced "building block" design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks. This design allows the screw component structure to be flexibly combined according to the process requirements of the material variety to achieve material transportation, refinement, shearing, and discharge. This effectively solves the difficult-to-consider contradiction between the versatility and specificity of the screw, achieving the purpose of one machine with multiple uses.

Reduced Maintenance Costs

Another advantage of the "building block" design is that worn screw and barrel components can be partially replaced, preventing the entire screw or barrel from being scrapped and greatly reducing maintenance costs. This means you save time and money without having to replace the entire unit or buy an entirely new barrel.

Continuous Material Research and Development

zhitian has its own powder metallurgy equipment and has developed materials such as ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide, which are widely used in wear-resistant and corrosion-resistant usage scenarios.

Type Of Barrels and Materials

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel

Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide.

Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide.

Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide.

Products Show

Why Choose Zhitian's Extruder Barrel?

The screw barrel of a twin-screw extruder. We have extensive experience in twin-screw extruder screw barrels. Through continuous practice, we have developed a variety of new screw barrels, which, with different screw designs, greatly increase output and enhance service life. We also provide OEM services for well-known extruder complete machine manufacturers in the world. Zhitian is one of the best extruder barrel manufacturers in China.

Our Advantages

Long service life
Material: Choose materials with high wear resistance, corrosion resistance or both according to customer needs
The professional technical team can not only provide timely and accurate sample measurement and design, but also provide technical services for component combinations
A complete modern management system ensures that customers receive 100% qualified products. At the same time, the quality of each product is traceable
Wide range of applications: The range of use is universal and can be applied to the processing of a variety of materials

Company Profile

NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder. So for has more than 20 years experience. Manufacturing gearboxes, barrels and screw elements of twin screw extruder. We also provide you the refurbishment service for gearboxes and barrels.

My company with strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Since my company's products have been mature application in major global well-known brands.

All ZT keep pay attention to every step of the details, we are looking forward to the forge ahead together with you!

Global Excellence

As a leading manufacturer of key components such as twin screw extruder gearboxes, barrels, screw elements, and core shafts on a global scale, our company has earned the trust of customers worldwide through exceptional quality and professional service.

Our twin screw extruder gearboxes, known for their efficiency, stability, and durability, provide robust power solutions to customers across the globe. The unique design of our barrels ensures the stable operation of equipment, while our screw elements and core shafts, crafted with precision manufacturing processes, guarantee precise equipment performance.

Our products find extensive applications globally, ranging from the processing of high-molecular materials like plastics, rubber, and synthetic fibers to packaging in industries such as food, pharmaceuticals, and even emerging fields like lithium battery slurry coating for new energy sources. We consistently prioritize customer needs, offering personalized product designs and expert technical support to address practical challenges and create significant value.

Committed to continuous improvement in product quality and service standards, we strive for excellence to meet the evolving needs of our customers. We firmly believe that only through continuous innovation and enhancement can we maintain a leading position in the fiercely competitive global market.

We look forward to establishing long-term and stable partnerships with customers worldwide, collaborating to create a better future. If you have any questions or requirements regarding our products or services, please feel free to contact us at any time.

FAQ

Q1: What products and services does your company primarily offer?

A: Our company is a leading global manufacturer of key components for twin-screw extruders, mainly providing critical components such as twin-screw extruder gearboxes, barrels, screw elements, and core shafts. We are renowned for our excellent quality and professional service, catering to the processing needs of various industries worldwide.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our twin-screw extruder gearboxes are characterized by high efficiency, stability, and durability, providing powerful propulsion for our customers. Precision design and high-quality materials ensure outstanding performance across a variety of industrial applications.

Q3: In which industries are your products widely used?

A: Our products find extensive applications in industries such as processing high-molecular materials like plastics, rubber, and synthetic fibers, as well as in packaging for food, pharmaceuticals, and emerging fields like lithium battery slurry coating in new energy sources.

Q4: How can we obtain customized solutions?

A: We provide personalized product designs and professional technical support for our customers. If you require customized solutions, feel free to contact our customer service team at any time, and we will provide detailed customization options.

Q5: How can we establish a partnership with your company?

A: We welcome the establishment of long-term and stable partnerships with customers worldwide. If you have any questions or requirements regarding our products or services, you can contact our customer service team for more information.

Q6: What is your company's guarantee for product quality?

A: We are committed to delivering high-quality products and ensure compliance with the highest standards through rigorous quality control processes. Our quality assurance system is designed to meet customer expectations and exceed their anticipations.
