ISO Certified Twin Screw Barrel for Extruders 16.5-400mm

プロダクト細部

起源の場所: 江蘇、中国

ブランド名: ZHITIAN

支払及び船積みの言葉

最小注文数量: 1

価格: $300

最もよい価格を得なさい

プロダクト細部

製品の説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ISO certified twin screw barrel, extruder screw barrel 16.5-400mm, twin screw extruder barrel


材料:	EPDM	重さ:	50 kg
ネジのデザイン:	ツインスクロール	直径範囲:	16.5〜400mm
モデルタイプ:	20/30/35/36/40/50/52/53/58/60/65/75/85/95/110/125/135/135	バレルの材料:	HIPX260、CR12MOV、WR13、W6MO5CR4V2、WR30
固体バレル材料:	Hastelloy-C Alloy、38crmoala、304/316/316Lステンレス鋼	直接化合物:	ZT610 NI60ベース+CU、ZT615 NI60ベース、ZT625 NI60ベース+タングステンカーバイド、股関節コバルトベース+タングステンカーバイド
完全なライナー材料:	38CRMOALAライナー、440Cステンレススチールライナー、CR12MOVライナー、SKD11/SKD61ライナー、DC53ライナー、W6MO5CR4V2ライナー、ZTCR26ライナー、SAM26	複合合金ライナー:	S45C+ZT610 NI60ベースのライナー+CU、S45C+ZT615 NI60ベースのライナー、S45C+ZT625 NI60ベースのライナー+タングステンカーバイド、S45C+ヒップコバルトベ
耐摩耗性:	高い耐摩耗性	耐食性:	高耐腐食性
デザインタイプ:	ビルディングブロック設計	アプリケーションマシン:	ツインスクリュー押出器
品質基準:	ISO 9001

材料:	EPDM
重さ:	50 kg
ネジのデザイン:	ツインスクロール
直径範囲:	16.5〜400mm
モデルタイプ:	20/30/35/36/40/50/52/53/58/60/65/75/85/95/110/125/135/135
バレルの材料:	HIPX260、CR12MOV、WR13、W6MO5CR4V2、WR30
固体バレル材料:	Hastelloy-C Alloy、38crmoala、304/316/316Lステンレス鋼
直接化合物:	ZT610 NI60ベース+CU、ZT615 NI60ベース、ZT625 NI60ベース+タングステンカーバイド、股関節コバルトベース+タングステンカーバイド
完全なライナー材料:	38CRMOALAライナー、440Cステンレススチールライナー、CR12MOVライナー、SKD11/SKD61ライナー、DC53ライナー、W6MO5CR4V2ライナー、ZTCR26ライナー、SAM26
複合合金ライナー:	S45C+ZT610 NI60ベースのライナー+CU、S45C+ZT615 NI60ベースのライナー、S45C+ZT625 NI60ベースのライナー+タングステンカーバイド、S45C+ヒップコバルトベ
耐摩耗性:	高い耐摩耗性
耐食性:	高耐腐食性
デザインタイプ:	ビルディングブロック設計
アプリケーションマシン:	ツインスクリュー押出器
品質基準:	ISO 9001

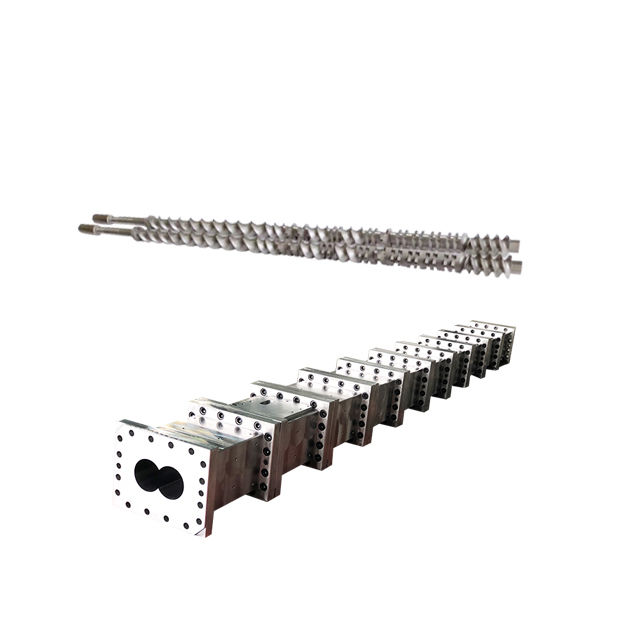

ISO Certified Twin Screw Barrel for Extruders 16.5-400mm

ISO Certified Twin Screw Barrel for Industrial Pelletizing Lines

Product Specifications

Attribute	Value
Material	EPDM, Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30
Weight	50 kg
Spare Parts Type	Barrel
Screw Design	Twin screw
Application Machine	Twin Screw Extruder
Range	16.5 to 400mm
Standard	GB ISO 9001
Models Available	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135

Product Description

The twin-screw extruder barrels produced by Zhitian feature high wear-resistance and corrosion-resistance, making them ideal for twin screw extruders across various industries.

Industry Applications: Our barrels are widely used in plastics, rubber, chemicals, food, and new energy industries. Countless extruders worldwide use our high-performance components.

Advanced Building Block Design

Our split twin-screw extruder barrels feature an innovative "building block" design:

Allows flexible combination of screw components based on material process requirements
Enables material transportation, refinement, shearing, and discharge optimization
Resolves the versatility vs. specificity dilemma in screw design
Permits partial replacement of worn components, reducing maintenance costs

Material Options

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide
Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide

Product Gallery

Why Choose Zhitian's Extruder Barrel?

With extensive experience in twin-screw extruder screw barrels, we've developed innovative designs that increase output and enhance service life. We provide OEM services for leading extruder manufacturers worldwide.

Our Advantages

Extended service life through premium materials
Custom material selection for wear and corrosion resistance
Professional technical team for precise measurement and design
Comprehensive quality control with traceability
Wide application range for processing diverse materials

Company Profile

Nanjing Zhitian specializes in manufacturing replacement parts for twin screw extruders, with over 20 years of experience producing gearboxes, barrels, and screw elements. We also provide refurbishment services.

Our company combines strong technical expertise, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service.

Global Excellence in Extruder Components

As a leading global manufacturer of twin screw extruder components, we provide:

High-efficiency gearboxes known for stability and durability
Precision-engineered barrels for optimal equipment performance
Custom screw elements and core shafts for specialized applications
Technical support for industries from plastics to new energy

Frequently Asked Questions

Q1: What products and services does your company primarily offer?

A: We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, known for excellent quality and professional service worldwide.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our gearboxes feature high efficiency, stability, and durability, with precision design and high-quality materials for outstanding industrial performance.

Q3: In which industries are your products widely used?

A: Our products serve plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery production.

Q4: How can we obtain customized solutions?

A: Contact our customer service team for personalized product designs and technical support tailored to your specific requirements.

Q5: How can we establish a partnership with your company?

A: We welcome long-term partnerships. Contact our customer service team to discuss your needs and our product capabilities.

Q6: What is your company's guarantee for product quality?

A: We maintain rigorous quality control processes to ensure our products meet the highest standards and exceed customer expectations.
